1, PRODUCT DETAILS:
|
Product Name |
high precision stainless steel tubing |
|
Length |
as required to cut by fixed length. |
|
Out Diameter |
3mm-114mm |
|
Thickness |
0.4mm-10mm |
|
Standard |
EN, DIN,SUS,AISI,ASTM,JIS GB etc. |
|
Technique |
Precision Cold rolled or by precision Cold drawing. |
|
Surface Treatment |
Ra<0.8μm//Ra<0.25μm/ as requiredBright Annealing 180-1200# out side polished |
|
O.D. tolerance |
±0.05mm/ -0.05/+0mm. |
|
Thickness tolerance |
±0.05mm/ -0.05/+0mm. |
|
Material |
1.4301/1.4307,304, 304L, 304H, S31803, S32750, 310S, 316/316L, 1.4401/1.4404,317L, 321,310S,904L, |
|
Quality test |
3.1 MTC(mill test certificate), third part inspection of 3.2 cert. |
|
MOQ |
500kgs.We also can accept sample order. |
|
Shipment time |
Within 30 workdays after receiving deposit or L/C |
|
Export packing |
All tubes to be individually sleeved with end cap, packed in ply-wooden cases. |
2, PRODUCT TECKNICAL DETAILS:
1. high precision stainless steel tubing Out Diameter and Inside Diameter Tolerance / WT Tolerance : ±0.08mm/ or as per production standard, or up to your required. Length Tolerance：-0/+6mm；Straightness:：Max.0.15mm/m；Concentricity: ±0.015mm；
2.stainless steel hollow tube Production Process: We can provide precision Cold draw produce process for control the precision tolerance and surface quality, also we can provide precision cold rolling production process which is control the high require of size tolerance.

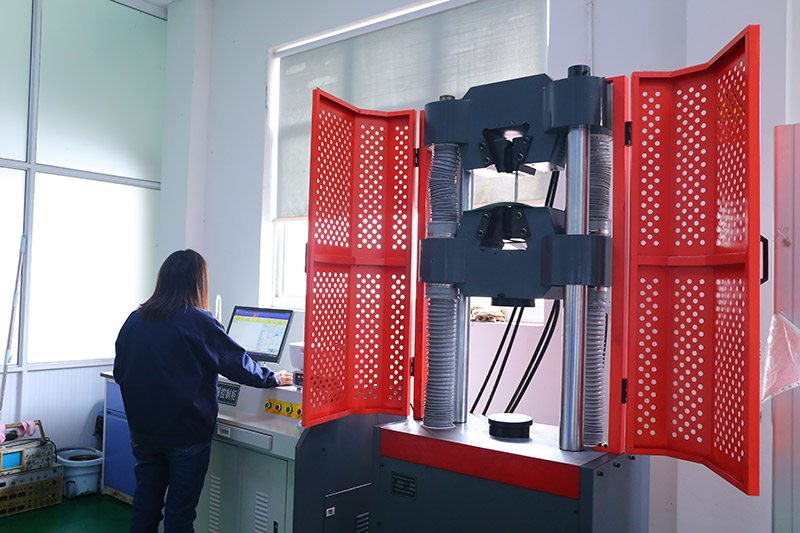

3.high precision stainless steel tubing Inspections: Eddy Current testing,Ultrasonic Testing, Hydraulic testing,100% of Out side diameter/ Inside diameter and wall thickness inspections.Surface Roughness：Ra≤0.8μm，Tubes Hardness：HRB（<90HRB).
4.Our Services:
1)Good knowledge on different market can meet special requirements.
2)Real manufacturer with our own factory located in Jiaxing, Zhejiang, China.
3)Strong professional technical team ensure to produce the top quality products.
4)Special cost control system ensure to provide the most favorable price.
5）Rich experience on outdoor equipment.
3, Main technology and process:
1.Technology of controlling mechanical properties of high precision stainless steel tubing by cold drawing deformation
2.Inner hole finish control technology.
3.Tubes inside surface cleaning technology.
4.Precision cold drawing technology.
